Illuminate your BIM Designs

Mounted surface | Suspended

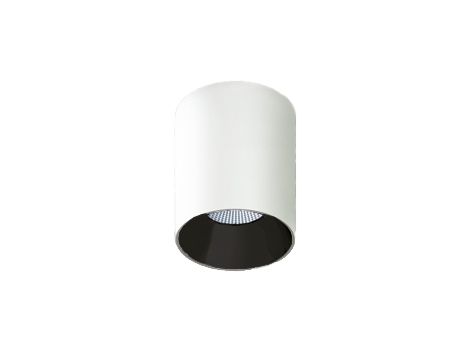

Suspended or ceiling mounting downlight model KOMBIC 100 SF by Lamp brand. Body made of white aluminum extrusion with reflector made of recycled polycarbonate R-PC FR WHITE TM non-brominated flame retardant additive. Flammability grade V0 according to UL94. Black interior reflector. Heatsink made of die-cast aluminium. COB LED, colour temperature 2700K with CRI90. Luminaire with electronic wiring included. Insolation Class I. Lifetime: >100.000 L90 B10. With IP43 degree of protection. Group 0 photobiological safety. With Wide Flood optics to achieve a controlled light distribution and low glare level, less than UGR<19. Environmental Product Declaration - EPD®available, according to UNE-EN ISO 9001:2015 and UNE-EN ISO 14001:2015.

Lineal

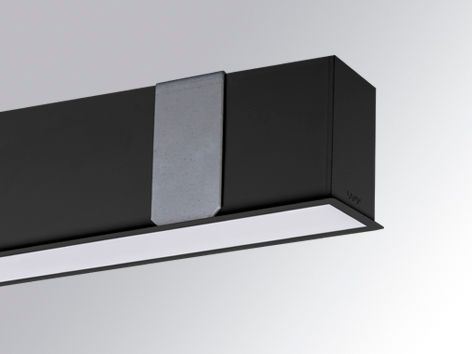

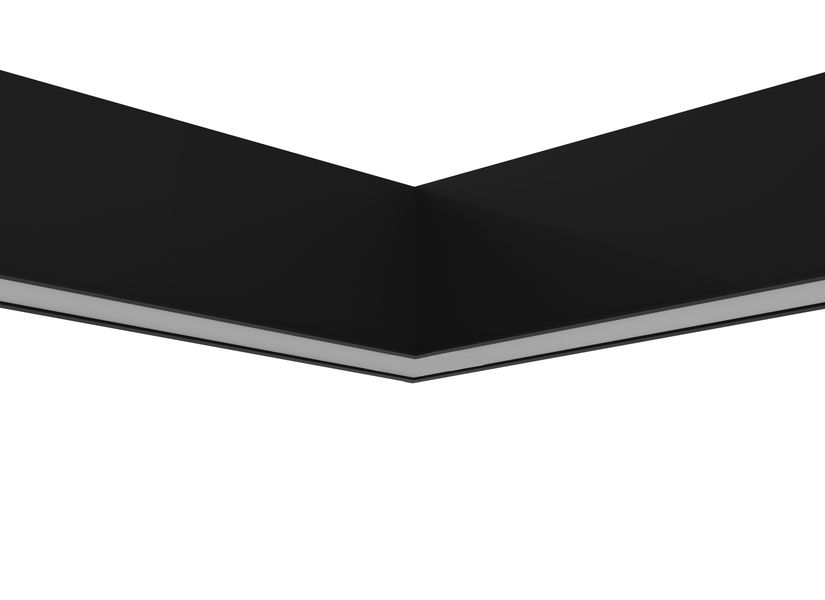

FIL45 CORNER REC LAMP brand. Made in extruded recycled aluminum with a rate of 80%, withopal polycarbonate diffuser. Model for LED MID-POWER, colour temperature 3000K with CRI80 and with electronic wiring DALI-2 included. With IP43, IK07 protection rating. Insulation class I. Photobiological safety group 0. LED life time:>100.000h L80 B10. Available finishes: White, black and grey. Environmental Product Declaration - EPD®available, according to UNE-EN ISO 9001:2015 and UNE-EN ISO 14001:2015.

Lineal | Suspended | Mounted surface

Outdoor suspended or mounted surface structure model BAULINE, LAMP brand. Made of silver anodized aluminum extrusion and end covers of lacquered aluminum injection lacquered in silver grey polyester, with decorative frontal piece of silver serigraph polycarbonate. Model for LED HI-POWER, 3000K colour temperature, CRI 80 and control gear included. With Elliptical optics. IP67, IK10 protection rating. Insulation class I. Lifetime: 83.000 L90 B10

Flood light

Body: Corrosion-resistant cast aluminum, electrostatically enameled with acrylic powder paint. An additional layer of electrophoretic paint is applied. The fixture undergoes anti-rust, phosphating, and spraying procedures.

High Bay Light

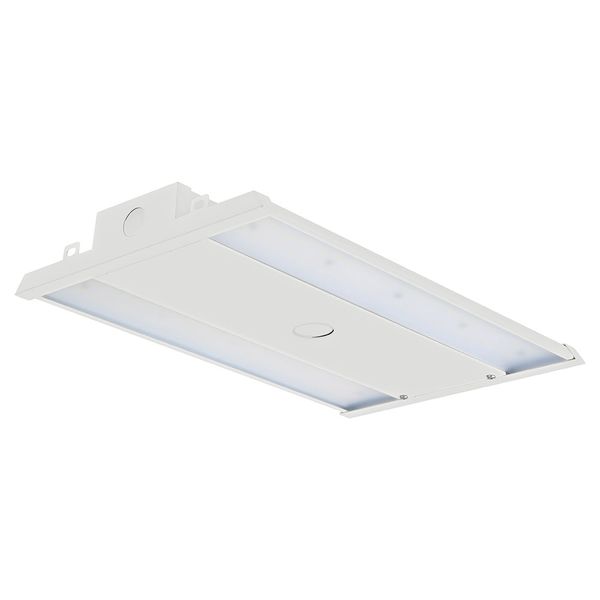

High-bay LED luminaire for industrial use, suspended in installation, for warehouses, production areas, convenience stores, etc., with an easy-to-install, maintenance-free design that provides excellent luminous efficiency and uniform light output with low glare thanks to its clear polycarbonate cover. It also offers savings of up to 50% compared to traditional linear fluorescent technologies.

Public spaces | Floor

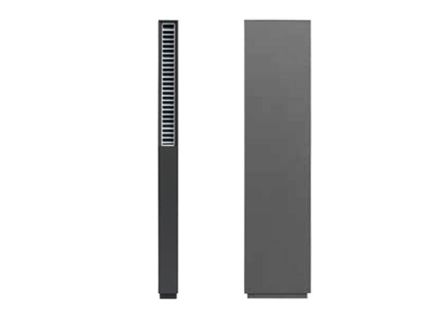

Bollard model B-SIDE LED, LAMP brand. Made in extruded recycled aluminum with a rate of 80% and injection, and translucent polycarbonate diffuser. 135mm in height. Its base has an anti-corrosion electro coating treatment. Model for HI-POWER LED, with 4000K colour temperature, CRI 80 and control gear included. IP65, IK10 protection rating. Insulation class I. Lifetime: 50. 000 L70 B10. BUG Rate: B0 U1 G0, ULOR: 27,2%. Available finishes: anthracite and textured grey.

Down Light | Mounted surface

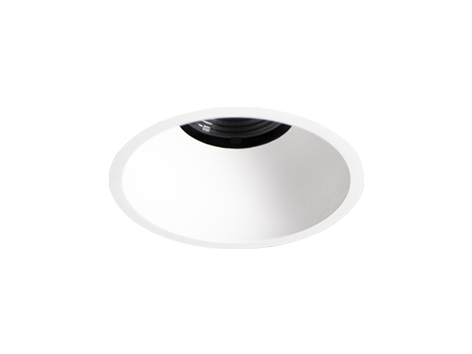

Suspended or ceiling mounting downlight model KOMBIC 100 SF by Lamp brand. Body made of black aluminum extrusion with reflector made of recycled polycarbonate R-PC FR WHITE TM non-brominated flame retardant additive. Flammability grade V0 according to UL94. Black interior reflector. Heatsink made of die-cast aluminium. COB LED, colour temperature 3000K with CRI80. Luminaire with electronic wiring included. Insolation Class I. Lifetime: 50.000 L70 B10. With IP43 degree of protection. Group 0 photobiological safety. With Wide Flood optics to achieve a controlled light distribution and low glare level, less than UGR 17. Environmental Product Declaration - EPD®available, according to UNE-EN ISO 9001:2015 and UNE-EN ISO 14001:2015.

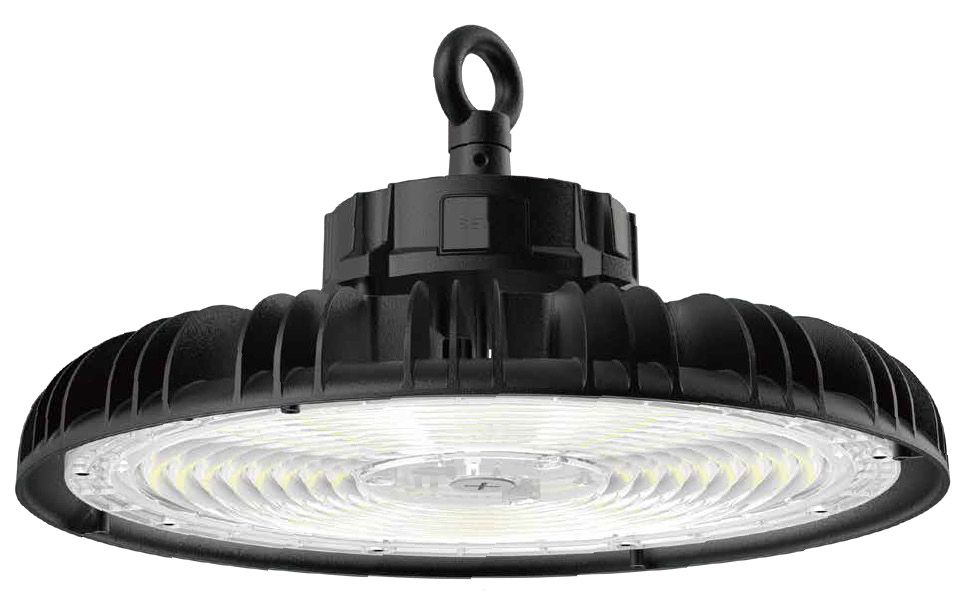

High Bay Light

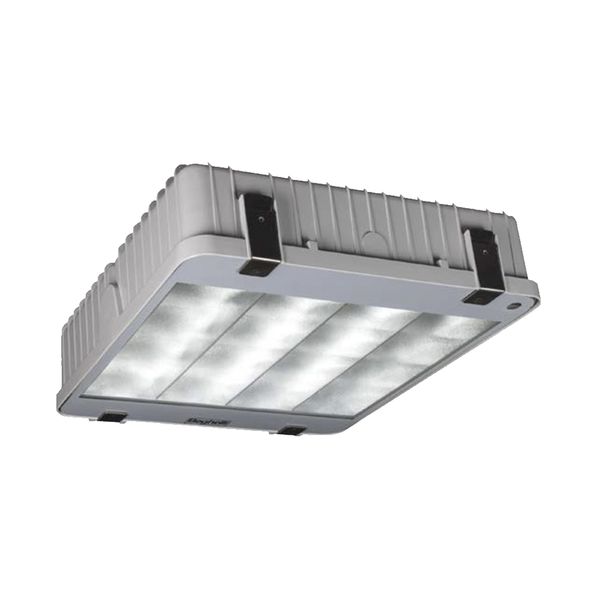

High-bay LED luminaire for industrial use, suspended using its central fitting, ideal for applications in warehouses, production areas, gyms, etc. This luminaire features an easy-to-install and maintenance-free design, ensuring excellent luminous efficiency. It also offers greater impact resistance thanks to its robust construction and protection against dust and moisture ingress. It provides uniform light output with low glare thanks to its clear polycarbonate lens. Additionally, it offers energy savings of up to 50% compared to traditional HID technologies.

Flood light

Outdoor spotlight model SHOT 120, LAMP brand. Made of lacquered aluminium injection with electro coating treatment and tempered glass, stainless steel screws and silicone joints. Model for LED HI-POWER, 3000K colour temperature, CRI 80 and control gear included. With Medium Flood optics. IP65, IK06 protection rating. Insulation class II. Lifetime: 60. 000 L90B10. BUG Rate: B0 U0 G0, ULOR: 0%. Available finishes: anthracite and textured grey

Flood light

LAMP SHOT 80 outdoor projector. Manufactured from die-cast aluminum with a cataphoresis coating and tempered glass, stainless steel screws, and silicone gaskets. This model is designed for high-power LEDs, featuring a color temperature of 3000K, CRI 80, and integrated electronic control unit. It has medium flood optics, IP65 and IK06 protection ratings, and Class II insulation. Lifespan: 60,000 hours (L90B10). Bug Rate: B0 U0 G0, ULOR: 0%. Available finishes: anthracite and textured gray.

Low Bay Light

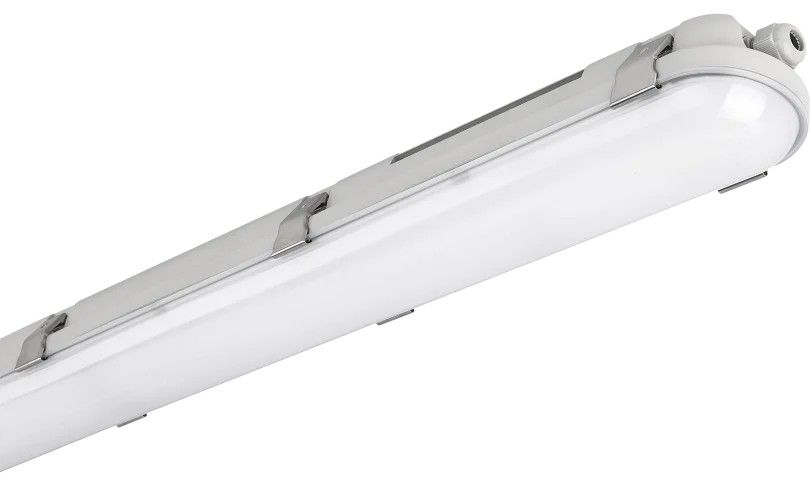

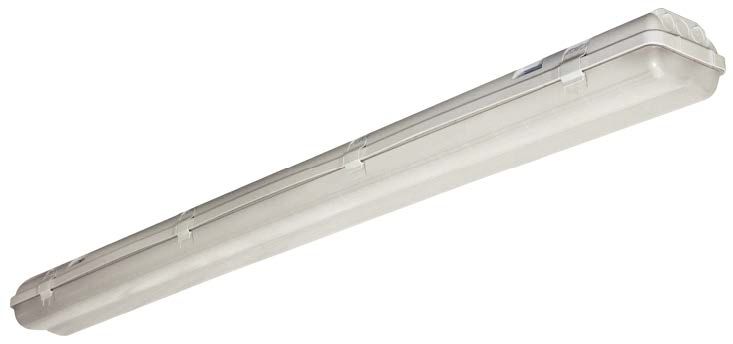

Vapor-proof LED surface-mount luminaire for industrial use, using its installation hardware, for applications in warehouses, production areas, gyms, etc., with an easy-to-install and maintenance-free design that provides excellent luminous efficiency with greater impact resistance thanks to its robust construction and protection against dust and moisture ingress. It features uniform light output with low glare thanks to its clear polycarbonate lens, and also offers energy savings of up to 50%.

Dark sky | Public spaces

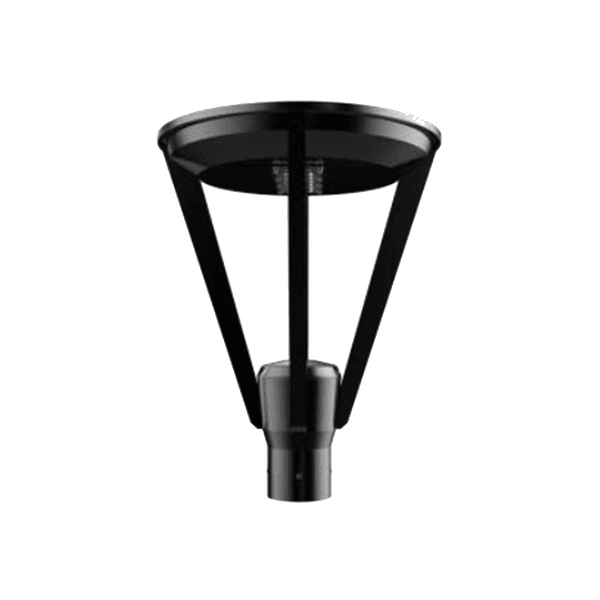

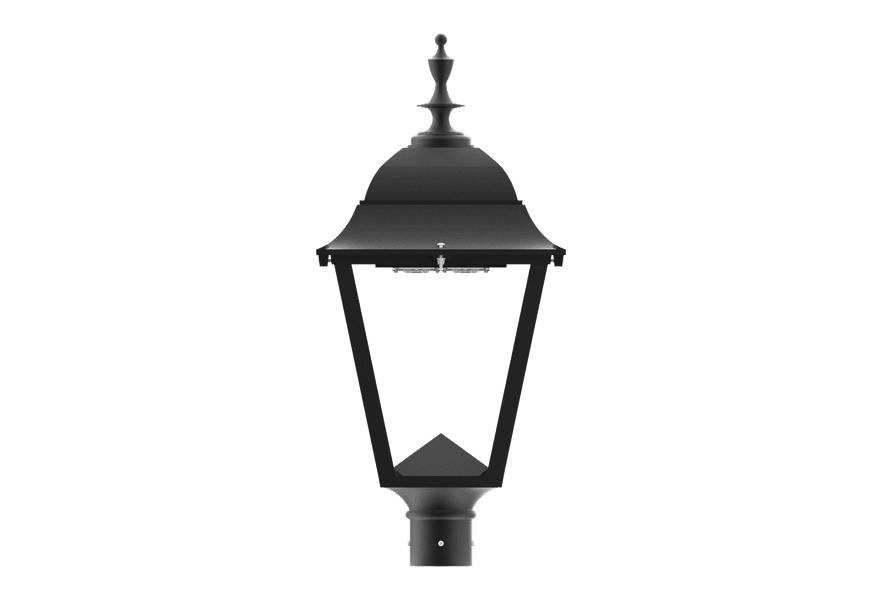

Bilbao Post Top Luminaire, Actual line, with aluminum housing and designed to accept high-efficiency M-HP-IP LED modules with integrated optics. Height 60.8 cm Width 40.5 cm.
